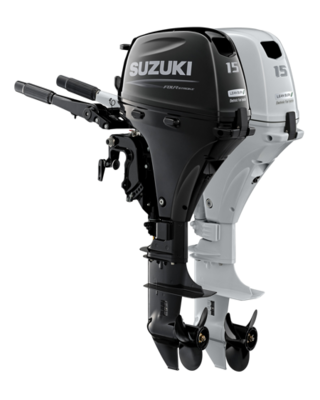

Suzuki DF15A 15HP Outboard Engine Range

Description

DF15A Lean Burn

Suzuki DF 15 AS Short shaft (381mm) Recoil start and tiller steer

Suzuki DF 15 AL Long shaft (381mm) Recoil start and tiller steer

Suzuki DF 15 AES Short shaft (381mm) Electric start and tiller steer

Suzuki DF 15 AEL Long shaft (381mm) Electric start and tiller steer

Suzuki DF 15 ARS Short shaft (381mm) Electric start and Remote steer, inc side mount control box

Suzuki DF 15 ATL Long shaft (381mm) Electric start and Remote steer, inc side mount control box, Power trim

A world first with battery-less fuel injection
When you want to get up and go, you should be able to and with Suzuki’s portable outboards you can.

State-of-the-art designs make the new DF20A and DF15A among the most technologically advanced portable outboards around. The DF20A and DF15A are the world’s first outboards in the 20hp and 15hp classes equipped with a battery-less fuel injection system that offers quick, easy starts and cleaner, fuel-efficient operation.

Our engineers took a bold approach in building all-new fuel injection system components that are smaller and lighter than those found in previous systems. This keeps the overall weight of the DF20A lower than any other outboard in the four stroke 20hp class. By adding the proven Lean Burn Control technology to their design, these outboards deliver remarkable fuel economy and reduced emissions throughout their operating range.

Dimensions and weights of DF15AS

• Recommended transom height: 381mm (15in)
• Weight: 44.0Kg
• Bore x Stroke: 60.4 x 57mm

Engine specifications

• Starting System: Manual
• Engine Type: OHC 4-Valve
• Fuel Delivery System: Battery-less Electronic Fuel Injection
• No. of Cylinders: In-line 2
• Piston Displacement cm3: 327cc
• Maximum Output: 11kW
• Full Throttle Operating Range: 5,000 – 6,000
• Steering: Tiller
• Oil Pan Capacity: 1.0Lit.
• Ignition System: Digital CDI
• Alternator: 12V 6A
• Engine Mounting: Shear Mount
• Trim Method: Manual Trim & Tilt
• Gear Ratio: 2.08:1
• Gear Shift: F-N-R
• Exhaust: Through Prop Hub Exhaust
• In The Box: Includes fuel tank and aluminium propeller
