Suzuki DF20 AS & All models

Description

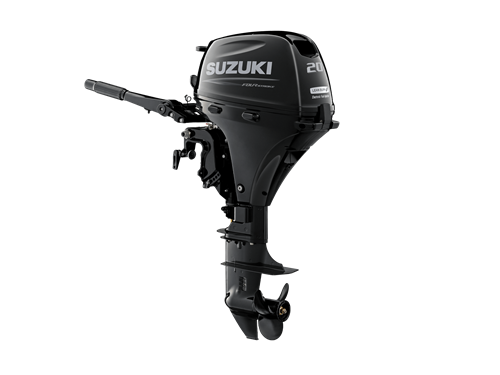

Suzuki DF20 AS Short shaft manual start.

A world first with battery-less fuel injection When you want to get up and go, you should be able to. And with Suzuki’s portable outboards, you can. State-of-the-art designs make the new DF20A and DF15A among the most technologically advanced portable outboards around. The DF20A and DF15A are the world’s first outboards in the 20hp and 15hp classes equipped with a battery-less fuel injection system that offers quick, easy starts and cleaner, fuel efficient operation.

Our engineers took a bold approach in building all-new fuel injection system components that are smaller and lighter than those found in previous systems. This keeps the overall weight of the DF20A lower than any other outboard in the four stroke 20hp class. By adding the proven Lean Burn Control technology to their design, these outboards deliver remarkable fuel economy and reduced emissions throughout their operating range.

Check out the following data sheet(s) from boat tests that we’ve done, which show how frugal our outboards really are: Standard Shaft Dimensions and weights Recommended transom height: 381mm (15in) Weight: 44.0Kg Bore x Stroke: 60.4 x 57mm Propeller Selection (pitch): 7\ Engine

specifications Starting System: Manual Engine Type: OHC 4-Valve Fuel Delivery System: Battery-less Electronic Fuel Injection No. of Cylinders: In-line 2 Piston Displacement cm3: 327cc Maximum Output: 20hp (14.7kW)kW Full Throttle Operating Range: 5,300 – 6,300 Steering: Tiller Oil Pan Capacity: 1.0Lit. Ignition System: Digital CDI Alternator: 12V 6A Engine Mounting: Shear Mount Trim Method: Manual Tilt & Trim Gear Ratio: 2.08:1 Gear Shift: F-N-R Exhaust: Through Prop Hub Exhaust In The Box: Includes fuel tank and aluminium propeller
